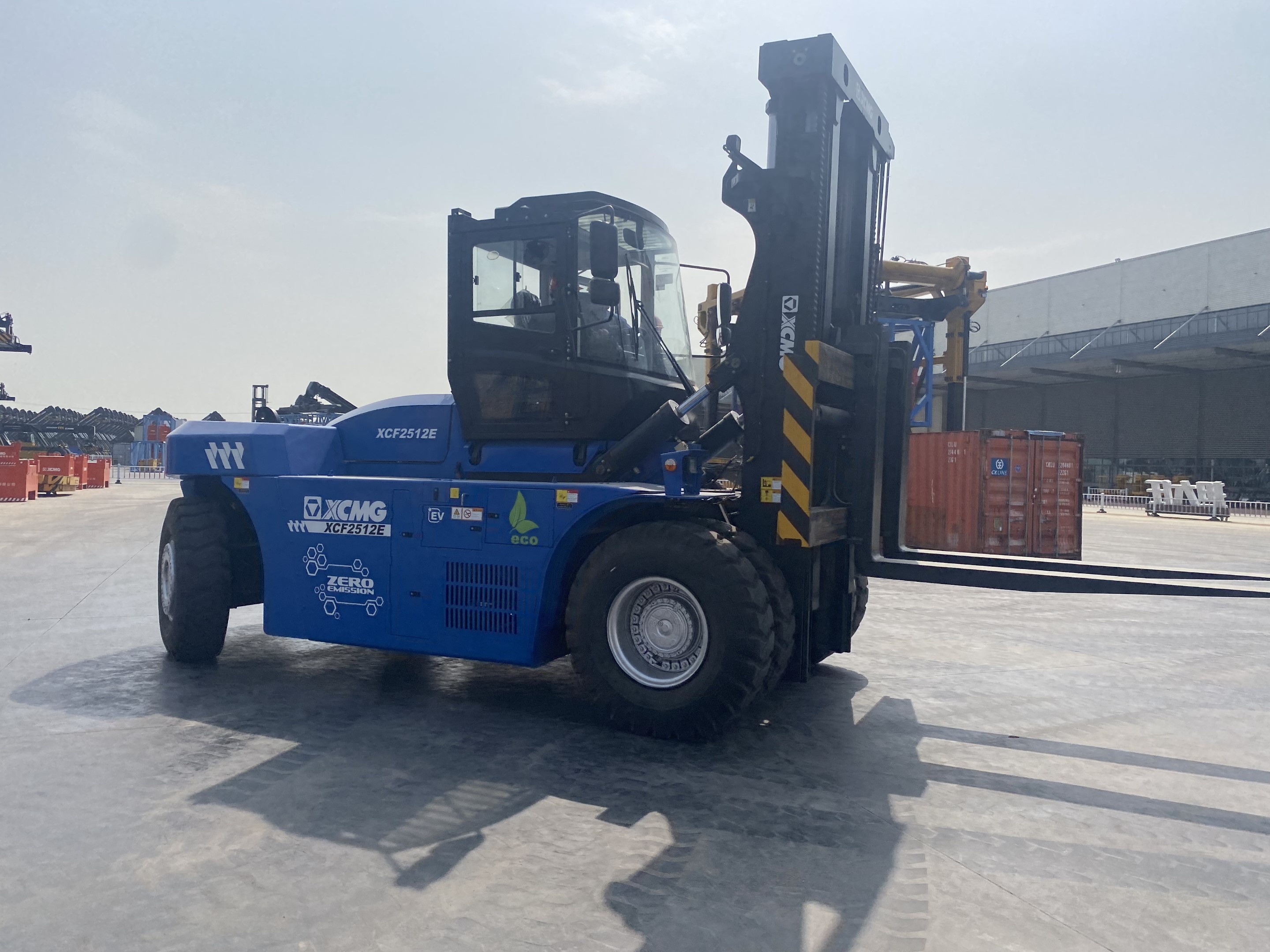

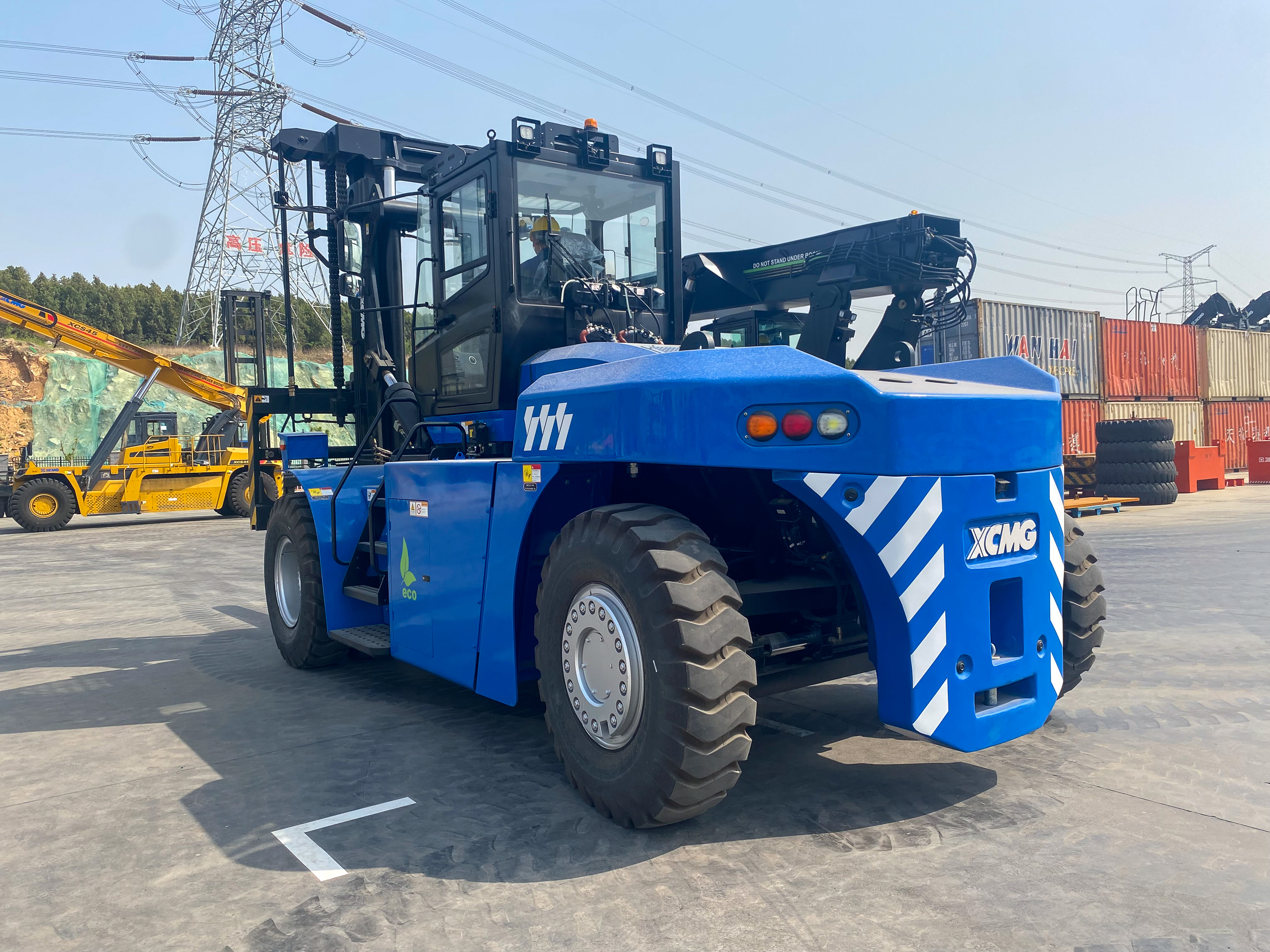

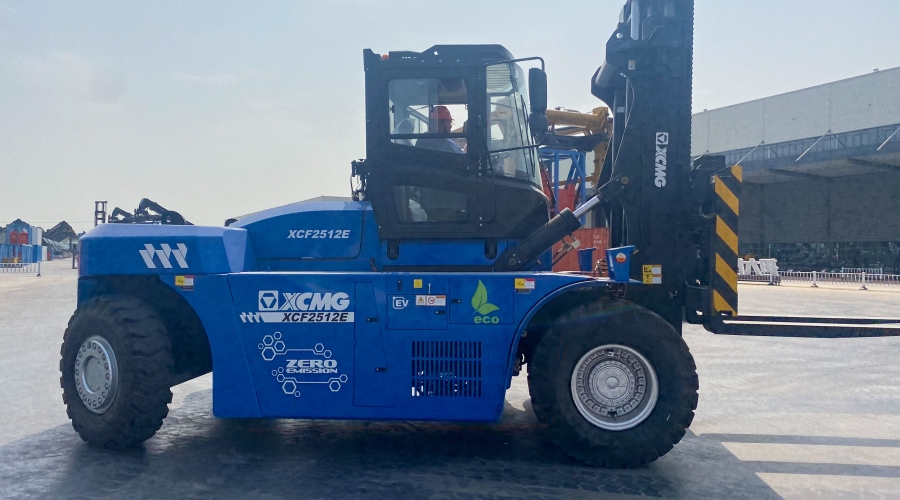

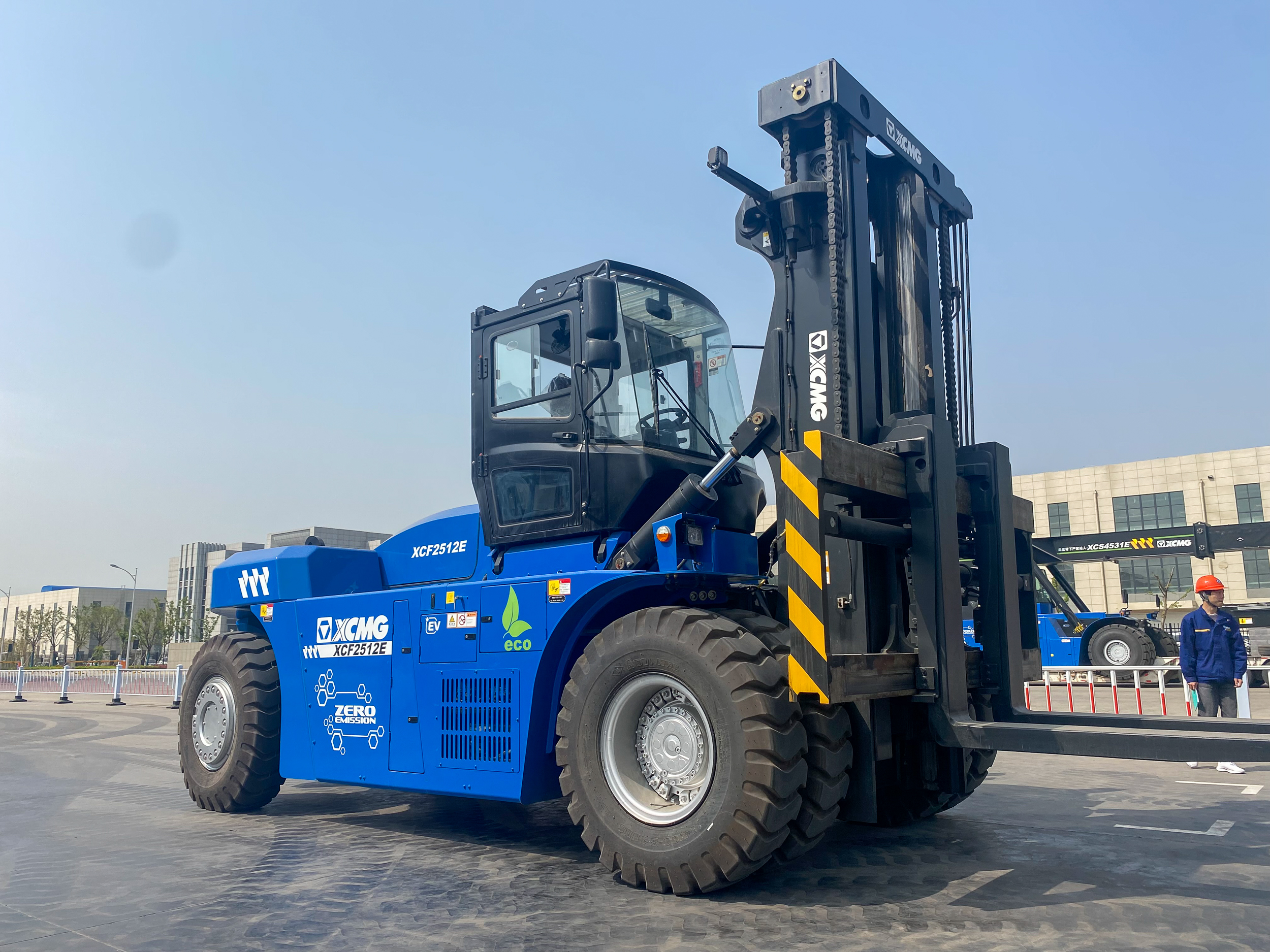

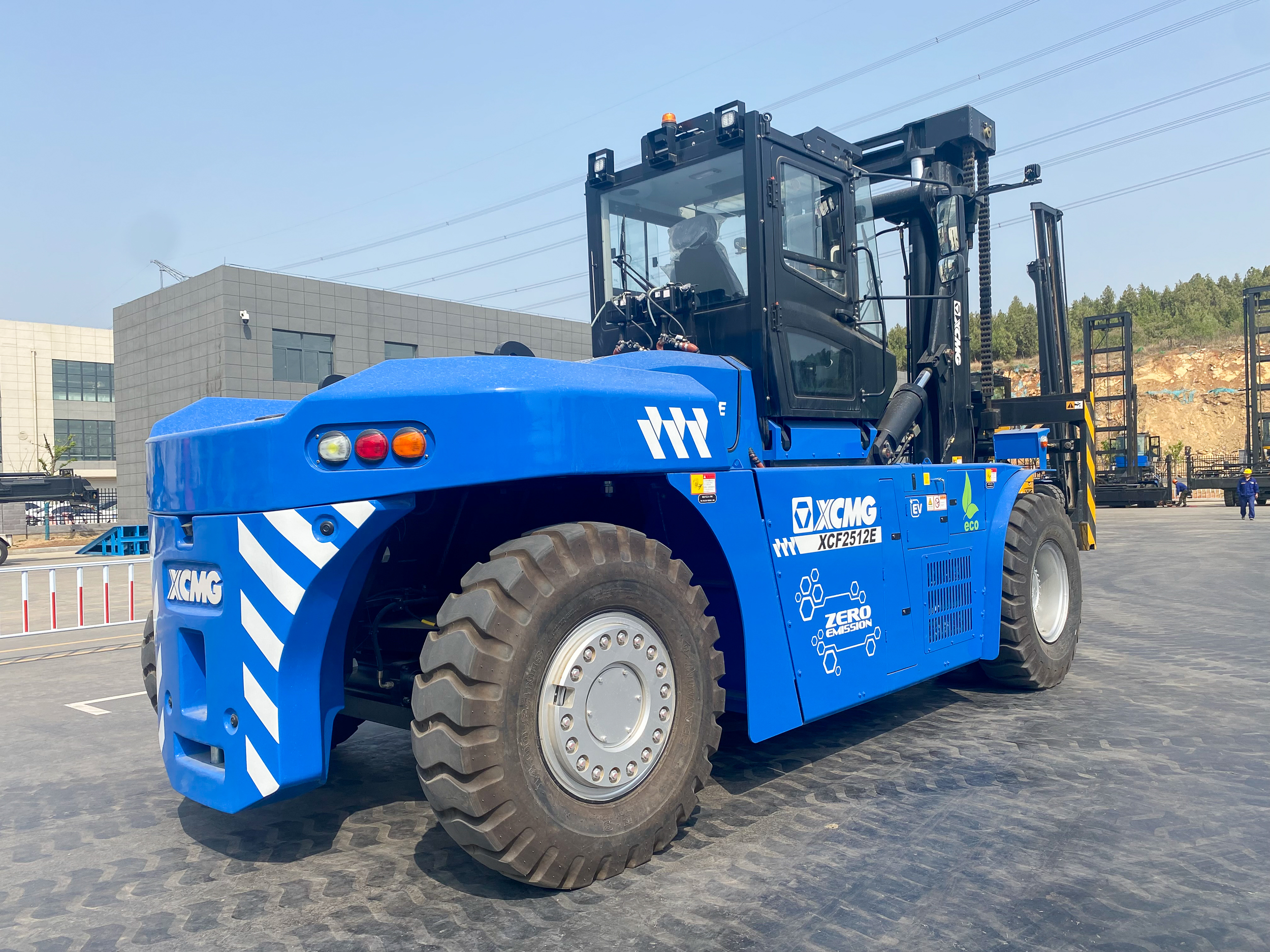

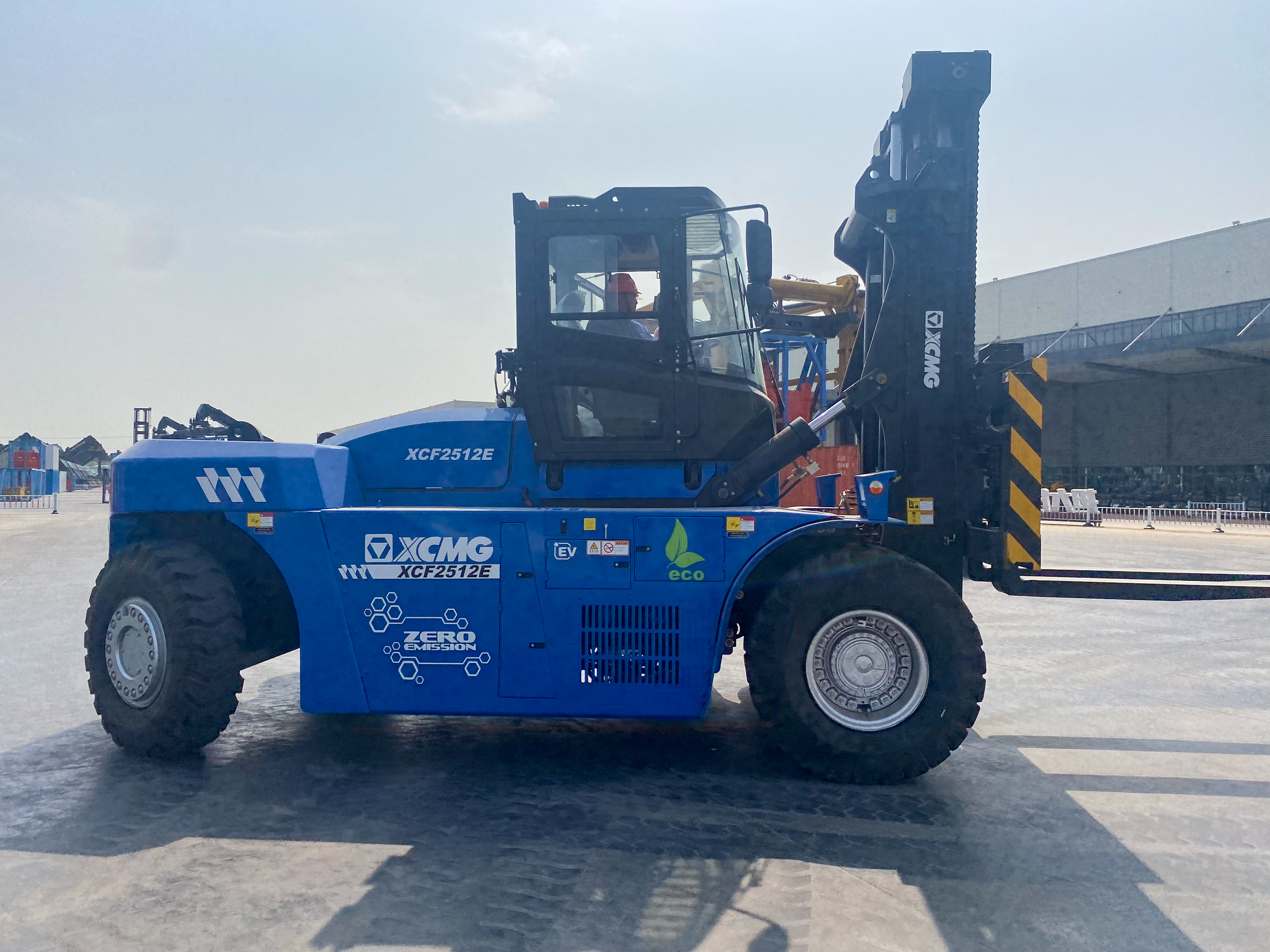

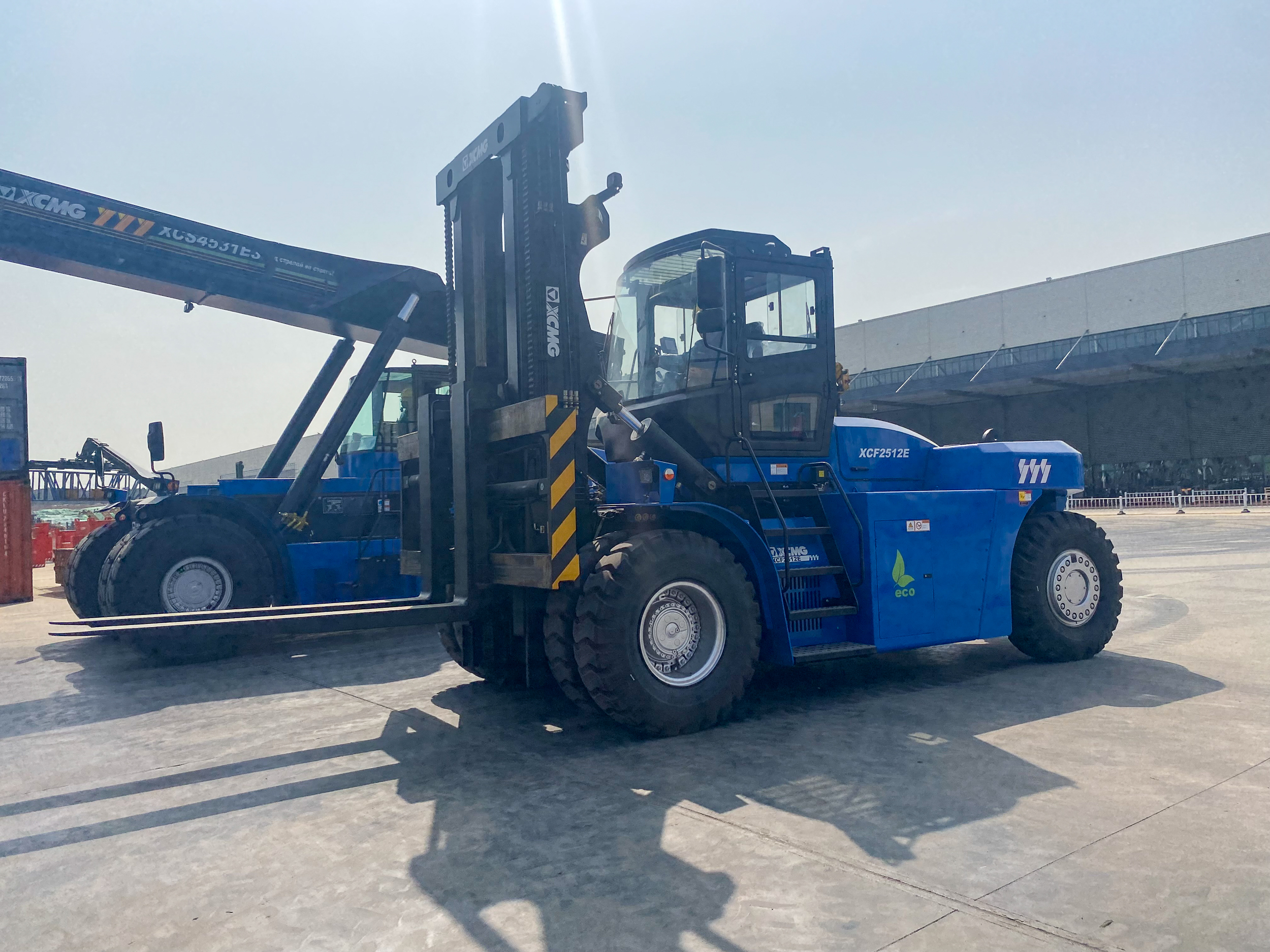

XCMG XC2512E Elektrisch heftruck

XCMG XCF2512E Elektrisch zware heftruck op korte termijn leverbaar

100% elektrisch af fabriek

25000 hefvermogen
2x DC 180 kwh snel lader
Maximale hefhoogte 5375mm
Draaicirkel 4750mm
600V-423 Kwh Accu

Standard equipment

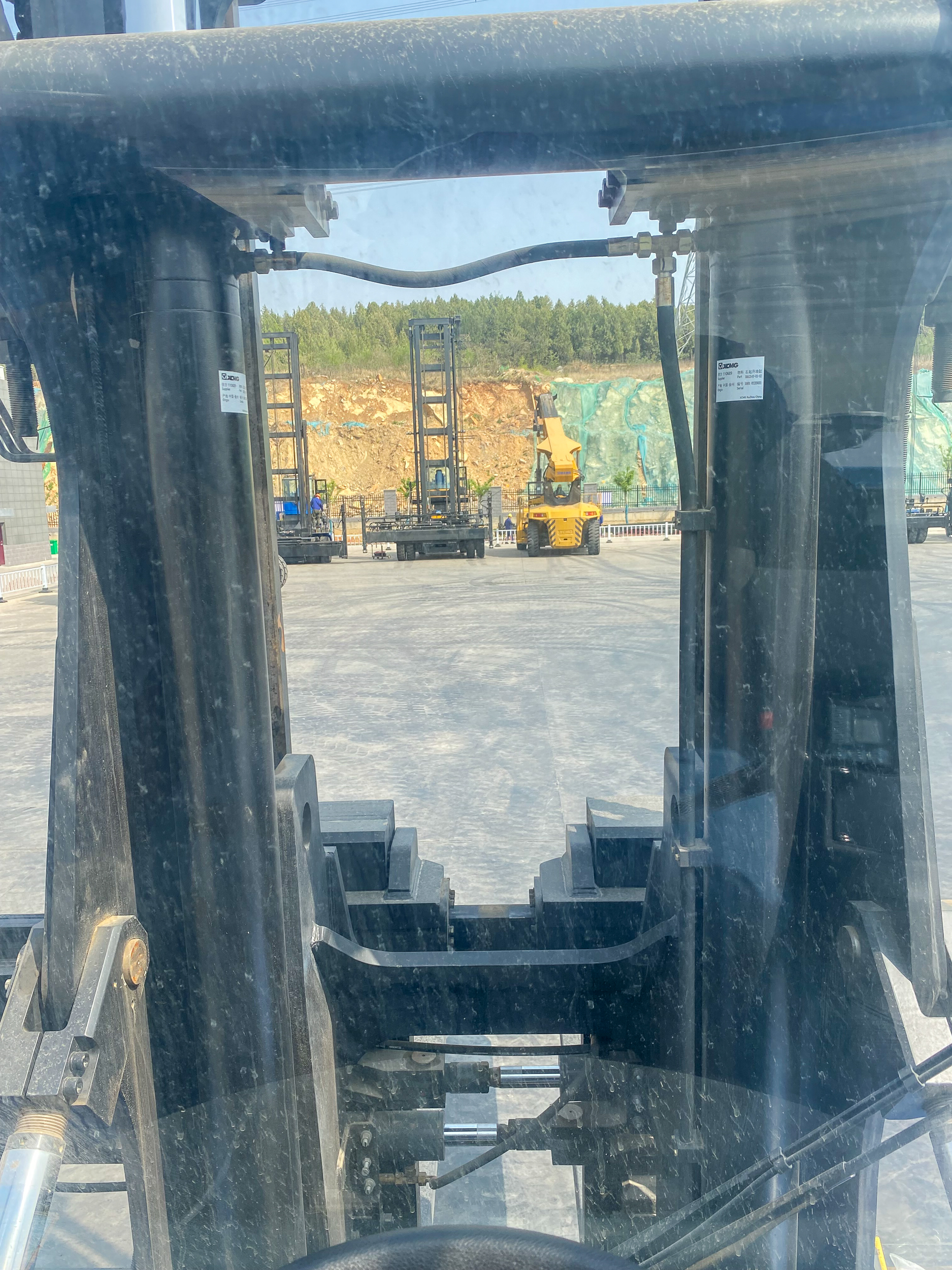

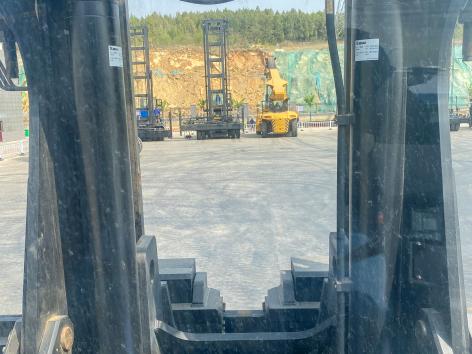

Cab: Dynamic moving full-view driver’s cab. Equipped with ergonomic seat, two point

retractable seat belt, water cup holder, 12V and 24V power supply, radio, loudspeaker amplifiers and HD Reverse view system.

Air condition: High-power, fully automatic heating and cooling air condition.

Drive motor: Permanent magnet synchronous motor with large output torque, high efficiency, low noise and maintenance free. Peak power: 230kW. Peak torque: 2000Nm.

Power battery pack: The industry’s mature lithium iron phosphate battery has high energy density，long cycle life and good safety.

Power battery pack voltage: 656V; Standaard: Power battery pack capacity: 423kWh. Optioneel 509 kWh, 595 kWh

Drive axle:

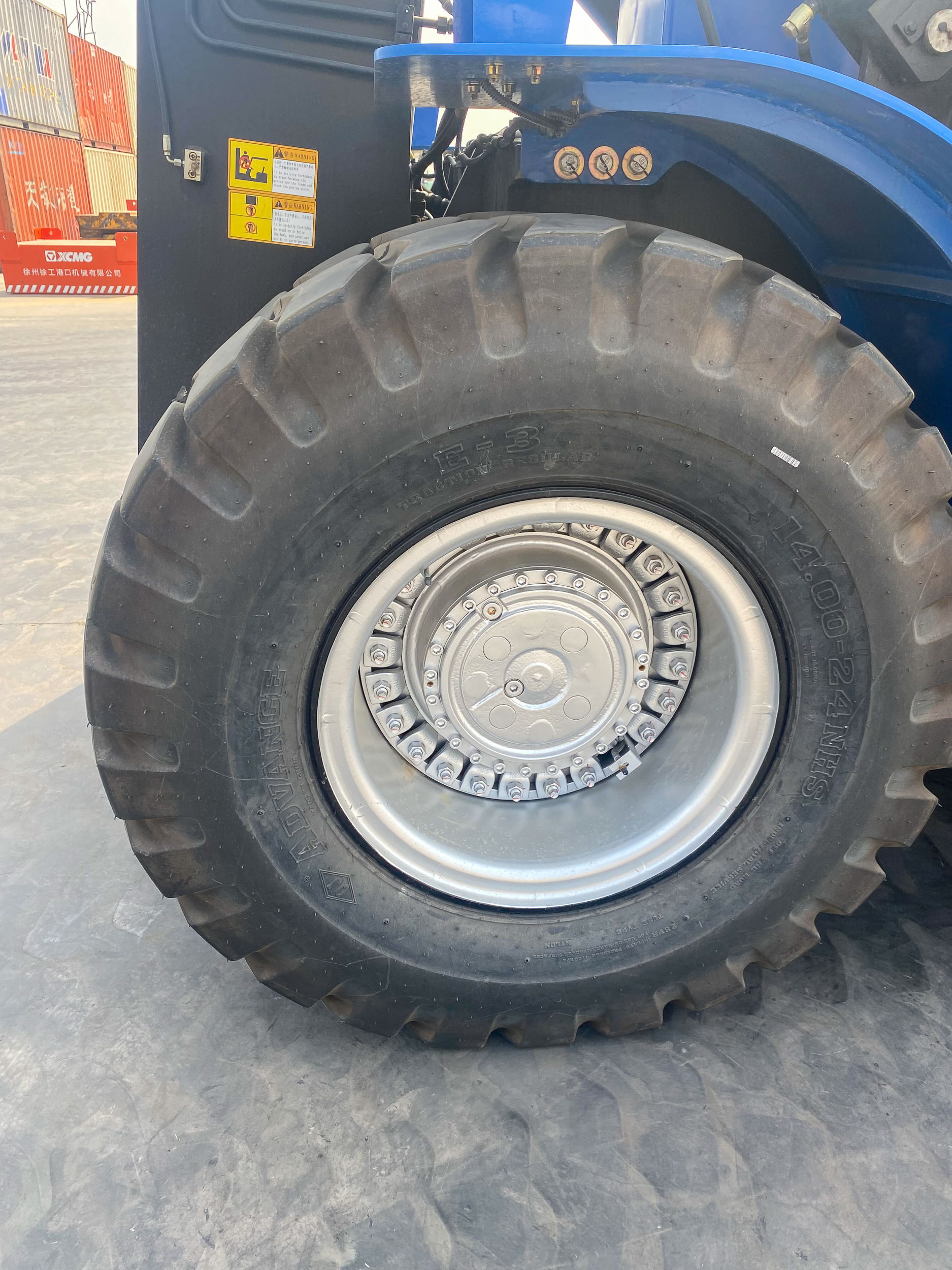

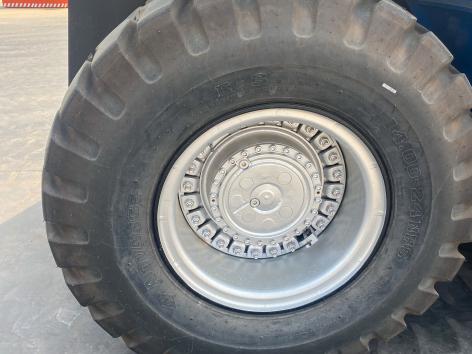

Tires: 6 diagonal tires, Tire specifications: 18.00- 25 40PR.

Brakes: Service brake: wet disc brake, acting on the front wheels, and equipped with independent cooling tank, high performance filter and radiator. Parking disc brake,acting on the front axle.

Steering: Equipped with full hydraulic power steering, and easy to use.

Hydraulic system: Germany Linder variable plunger pump and America Parker valve, the system has compound action, high and low speed automatic switching(high speed when unloaded, low spend when loaded.), vertical lifting and spreader anti-swing function. Equipped with high performance filterand high power independent radiator.

Electric system: 618V CATL lithium iron phosphate battery system is equipped with the industry’s mature BMS battery management system. Fixed and mobile charging piles with different power can be selected. It is suitable for 380V power supply and easy to use. 24V Can bus control system, two batteries, negative ground. Driving lights: two headlights, two turning signals in front of the vehicle; two turning signals ,two brake lights and two reversing lights behind the vehicle. Working lights: four working lights at the spreader locks, four working lights at the middle of the boom, four working lights behind the vehicle. Warning lights: one rotating alarm lamp at the back of the vehicle.

Safety devices: Real time leakage monitoring and active protection, current and voltage overload protection, LMT, anti-tilting protection device for rear axle, long distance astern radar, one 2kg fire extinguisher, automatic fire extinguishing system.

Frame: Frame is made of high tension steel, with anti- torsion large cross-section. Two-stage, quadrangular telescopic boom,
